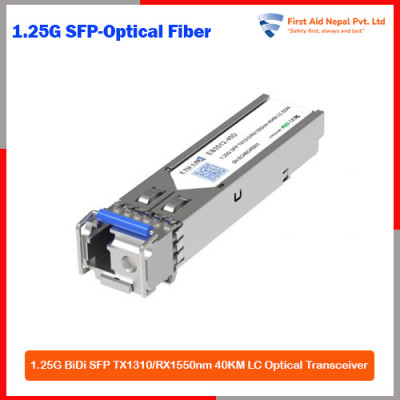

1.25G BiDi SFP TX1310/RX1550nm 40KM LC Optical Transceiver

DESCRIPTIONS: The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40KM transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Key Factors:

• Dual data-rate of 1.25Gbps/1.063Gbps operation.

• 1310nm DFB laser and PIN photodetector for 40KM transmission

• 1550nm DFB laser and PIN photodetector for 40KM transmission

• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

• Digital Diagnostic Monitoring:

• Internal Calibration or External Calibration

• Compatible with SONET OC-24-LR-1

• Compatible with RoHS

• +3.3V single power supply

• Operating case temperature range:0 °C to +70 °C (Commercial) -40 °C to +85 °C (Industrial)


• Gigabit Ethernet

• Fiber Channel

• Switch to Switch interface

• Switched backplane applications

• Router/Server interface

• Other optical transmission systems
