8 Zone Fire Alarm Panel-Agni

write a review

Agni Fire Alarm System Conventional Fire Alarm Panel

~~Rs. 30,000~~ Rs. 27,000

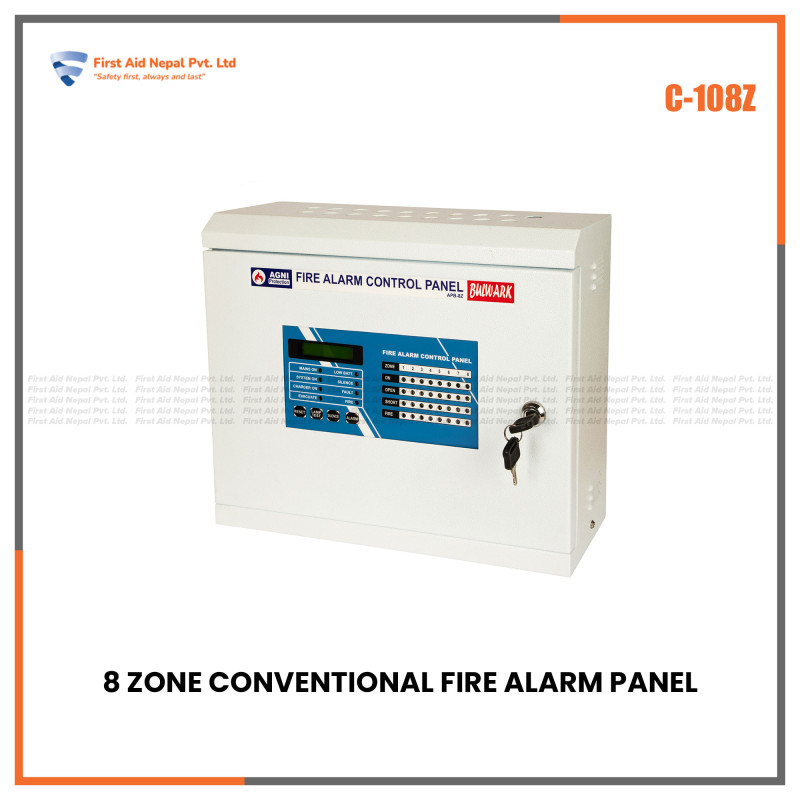

8 Zone Fire Alarm Control Panel Agni

AGNI–6Z/8Z conventional panel has been developed to provide a simple & reliable solution to the demands of today’s fire detection solution. The panels come with two variants 6 Zone & 8 Zone.

Technical Specification

AC Power : 220Vac, 50Hz ± 10%
Standby : 24 V DC
Operating Temperature : 0°C to 55°C
Operating Humidity : 95% (non-condensing)
Normal Zone Voltage : 19.5 -21.5 Vdc
Open Threshold Current : 4.4 mA
Short Threshold Current : 35 mA
Fire Threshold Current : 15 – 35 mA
Input Signal : Normally Closed or Normally Open

Guarantee Quality and Service
Money return policy

Please login to get add to cart features..

8 Zone Fire Alarm Control Panel Agni Protection.

Power I/P	230V AC/24VDC
Power Consumption	45 Watt
End of Line	4K7
No. of Zones	8
Detection O/P Supply	24V DC
Hooter O/P Supply	24V DC
Operating Temperature	0 to 40C
Operating Humidity	95%
