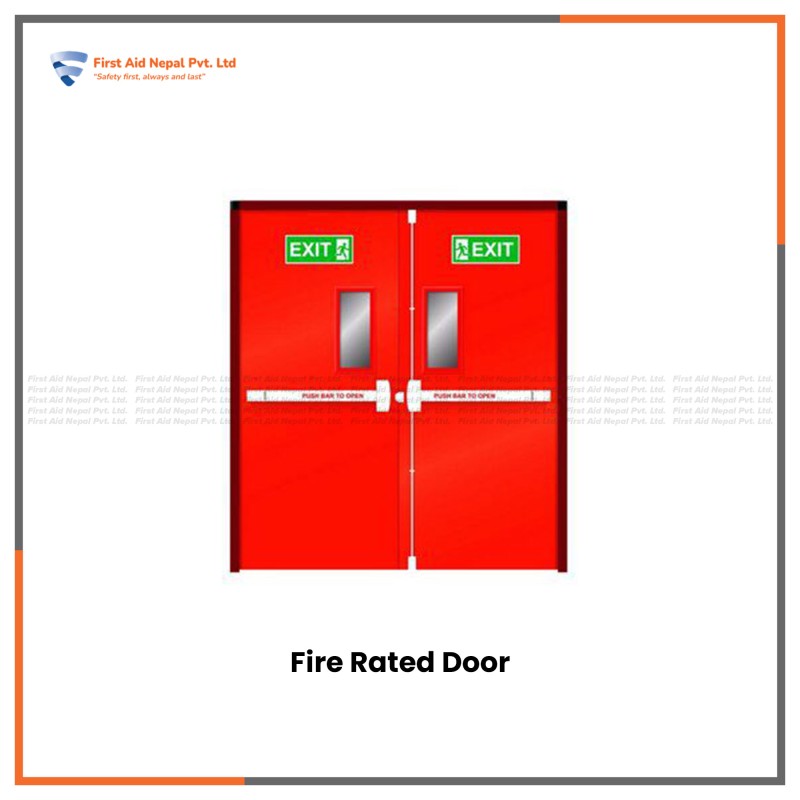

Double Leaf Fire Rated Doors International Standard:NFPA 80-1999, NFPA 252-1995, UL 10B, UL10C, UBC 7-2 and IBC 2000.

Detail Description Frame manufactured with 1.6mm Galvanized Steel

•  Door Leaf Thickness – 45 mm – 49 mm
• Door leaf Infill insulation – Wool insulation Infill treated
• Door leaf manufactured with 1.2 mm- Galvanized Steel
• Tested with 5 mm thick UL Listed Keralite FR glass of Saint-Gobain make
• Tested sizes of door
•  DOUBLE LEAF _ 2000X2400mm with Frame of Section 154x77mm – DOUBLE REBATED TYPE
• SINGLE LEAF – 1300X 2500mm with Frame of Section 150x67mm – DOUBLE REBATED TYPE

Recommended Finishes Frame and Door Leaf Powder Coating in desired RAL Shade Code Selective Wood Grain Finishes available FIRE DOOR STANDARDS BRIEF EXPLANATION (AMERICAN STANDARD) NFPA 80-1999, NFPA 252-1995, UL 10B, UL10C, UBC 7-2 and IBC 2000. A fire door must have a label attached indicating the fire test rating. Doors are rated for 3/4th of the rating of the surrounding wall. Every UL fire door must have a label . A fire door MUST be self-closing. SS ball bearing hinges must be used. Only UL listed/tested fire door hardware shall be used. A fire door with glass opening must be provided with a listed/tested glass, steel frame and glazing bead. As per UL 10B, UL10C at TBW DUBAI
