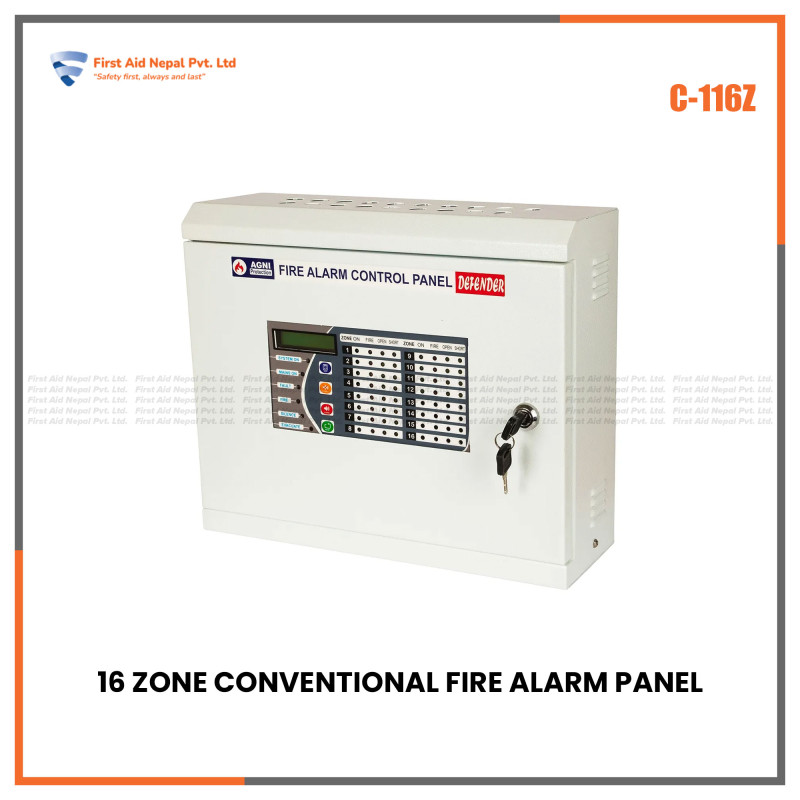

16 Zone Conventional Fire Alarm Panel

write a review

Agni Fire Alarm System Conventional Fire Alarm Panel

~~Rs. 76,000~~ Rs. 68,400

Conventional Fire Alarm Control Panel 16 Zone

AGNI 16Z model conventional panel has been developed to provide a simple & reliable solution to the demands of today’s fire detection solution. This model is designed friendly & cost effective. The panels comes with two variants–16 Zone & 48 Zone. Each zone can support upto 25 Nos of max zone length should be 200 meters with 1.5 sq mm cable.

Technical Specification:

Power supply : 230 V AC, 50 Hz / 24 V DC
Operating Voltage : 24 V DC
Normal Loop Voltage : 19.5-23.5V DC
Alarm o/p : 24 V DC
E.O.L. : 4K 7
Color of the Panel : Siemens Gray/Marble White/Red
Communication Wise : Single pair of twisted cables.

Guarantee Quality and Service
Money return policy

Please login to get add to cart features..

Specification:Conventional Fire Alarm Control Panel 16 Zone.

Features:

Advance Micro controller based Fire Alarm Panel.
10 to 48 zone Expandable.
16x2 character LCD Display.
Mains, A. C. Fail, fuse, Charging, Rev. Batt. Indication.
Zone wise fire, open, short LED indications.
Zone wise fire, open, short testing facility.
Zone healthy indications.
Zone isolations facility through switch.
Extra Potential free contact for fire & fault.
Trickle & fast charging facility.
Reset ,alarm cancel, Lamp test, controls etc.
Compatible with any make conventional smoke & heat detector.
485 Communication for Repeater & Mimic Panels.  Common fire, fault annunciation facilit
